CDWE

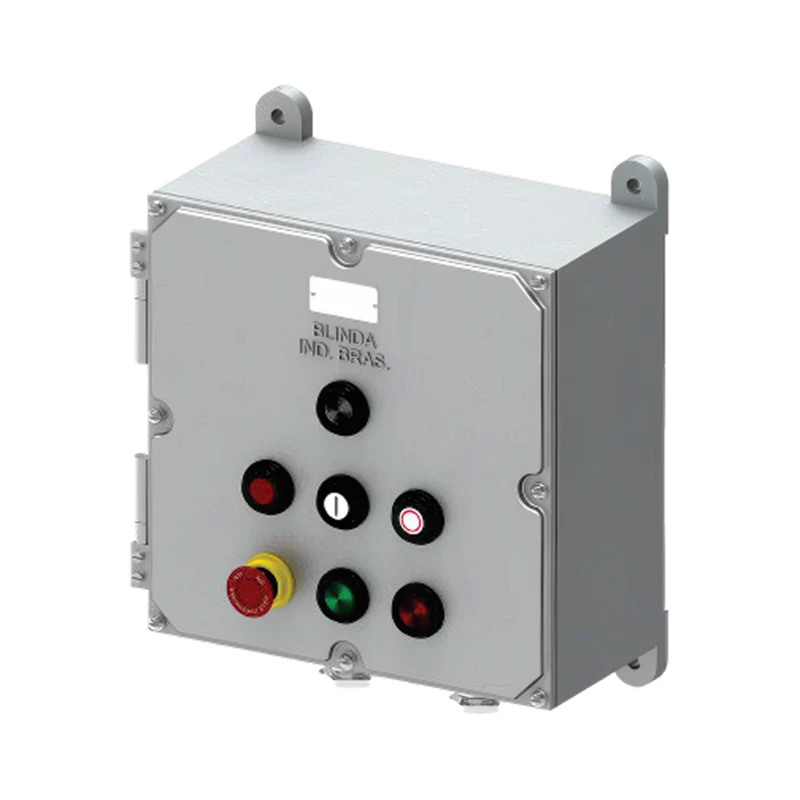

CDWE – Caixa de Distribuição de Segurança Aumentada Ex

Caixa Ex adequada para ligação de equipamentos elétricos e eletrônicos e para passagem e ligação de condutores elétricos. Corpo e tampa em alumínio fundido copper-free, placa de montagem em aço carbono, parafusos e arruelas em aço inox 304, terminal de aterramento para cabo até 25 mm², suportes de fixação, junta de vedação e dobradiças opcionais.

Certificado NCC 22.0082X. Proteção IP66. Classificações: Ex eb IIC T4 Gb; Ex db eb IIC T4 Gb; Ex db eb mb IIC T4 Gb; Ex ec IIC T4 Gc; Ex ia IIC T4 Gb; Ex tb IIIC T135 °C Db.

Roscas NPT de 1/2″ a 4″ ou Métrica M20 a M100. Entradas customizadas sob especificação; entradas e saídas devem garantir IP66.

Tampa padrão usa G1/H1; tampa alta usa G2/H2 e sufixo TA. Dobradiças são opcionais e comerciais, sem gerar variações.

Dimensões técnicas (mm)

LME/LMA, M22 e bornes

{"CDWE-01":{"dimensions_mm":{"A":"100","B":"75","C":"133","D":"64","E":"111","F":"86","G1":"72","H1":"59","G2":"92","H2":"81","i":"4","placa_montagem":"null","diametro_J":"1/4""},"cover_standard_mm":{"G":"72r","H":"59"},"cover_high_mm":{"G":"92r","H":"81"},"max_threaded_entries":{"LME":{"1/2"":1,"3/4"":1,"1"":1},"LMA":{"1/2"":2,"3/4"":2,"1"":1}},"max_M22_holes_on_cover":"null"},"CDWE-02":{"dimensions_mm":{"A":"100","B":"100","C":"133","D":"88","E":"110","F":"110","G1":"72","H1":"59","G2":"92","H2":"81","i":"4","placa_montagem":"null","diametro_J":"1/4""},"cover_standard_mm":{"G":"72r","H":"59"},"cover_high_mm":{"G":"92r","H":"81"},"max_threaded_entries":{"LME":{"1/2"":2,"3/4"":2,"1"":1},"LMA":{"1/2"":2,"3/4"":2,"1"":1}},"max_M22_holes_on_cover":"null"},"CDWE-03":{"dimensions_mm":{"A":"120","B":"75","C":"152","D":"66","E":"132","F":"87","G1":"72","H1":"59","G2":"92","H2":"81","i":"4","placa_montagem":"null","diametro_J":"1/4""},"cover_standard_mm":{"G":"72r","H":"59"},"cover_high_mm":{"G":"92r","H":"81"},"max_threaded_entries":{"LME":{"1/2"":1,"3/4"":1,"1"":1},"LMA":{"1/2"":2,"3/4"":2,"1"":1}},"max_M22_holes_on_cover":"null"},"CDWE-04":{"dimensions_mm":{"A":"160","B":"150","C":"200","D":"141","E":"170","F":"160","G1":"135","H1":"120","G2":"165","H2":"150","i":"5","placa_montagem":"140 x 130","diametro_J":"5/16""},"cover_standard_mm":{"G":"135r","H":"120"},"cover_high_mm":{"G":"165r","H":"150"},"max_threaded_entries":{"LME":{"1/2"":6,"3/4"":6,"1"":3,"1.1/4"":2,"1.1/2"":2,"2"":1},"LMA":{"1/2"":6,"3/4"":6,"1"":3,"1.1/4"":2,"1.1/2"":2,"2"":1}},"max_M22_holes_on_cover":"2"},"CDWE-05":{"dimensions_mm":{"A":"200","B":"200","C":"242","D":"190","E":"210","F":"210","G1":"163","H1":"150","G2":"195","H2":"180","i":"5","placa_montagem":"175 x 175","diametro_J":"5/16""},"cover_standard_mm":{"G":"163r","H":"150"},"cover_high_mm":{"G":"195r","H":"180"},"max_threaded_entries":{"LME":{"1/2"":6,"3/4"":6,"1"":6,"1.1/4"":2,"1.1/2"":2,"2"":1},"LMA":{"1/2"":6,"3/4"":6,"1"":6,"1.1/4"":2,"1.1/2"":2,"2"":1}},"max_M22_holes_on_cover":"4"},"CDWE-06":{"dimensions_mm":{"A":"220","B":"150","C":"258","D":"138","E":"230","F":"160","G1":"133","H1":"120","G2":"165","H2":"150","i":"5","placa_montagem":"200 x 120","diametro_J":"5/16""},"cover_standard_mm":{"G":"133r","H":"120"},"cover_high_mm":{"G":"165r","H":"150"},"max_threaded_entries":{"LME":{"1/2"":6,"3/4"":6,"1"":3,"1.1/4"":2,"1.1/2"":2,"2"":1},"LMA":{"1/2"":6,"3/4"":6,"1"":5,"1.1/4"":2,"1.1/2"":2,"2"":2}},"max_M22_holes_on_cover":"4"},"CDWE-07":{"dimensions_mm":{"A":"220","B":"200","C":"258","D":"188","E":"230","F":"210","G1":"133","H1":"120","G2":"165","H2":"150","i":"5","placa_montagem":"190 x 175","diametro_J":"5/16""},"cover_standard_mm":{"G":"133r","H":"120"},"cover_high_mm":{"G":"165r","H":"150"},"max_threaded_entries":{"LME":{"1/2"":6,"3/4"":6,"1"":5,"1.1/4"":2,"1.1/2"":2,"2"":1},"LMA":{"1/2"":6,"3/4"":6,"1"":5,"1.1/4"":2,"1.1/2"":2,"2"":2}},"max_M22_holes_on_cover":"6"},"CDWE-08":{"dimensions_mm":{"A":"280","B":"150","C":"316","D":"138","E":"292","F":"162","G1":"135","H1":"120","G2":"165","H2":"150","i":"6","placa_montagem":"255 x 125","diametro_J":"5/16""},"cover_standard_mm":{"G":"135r","H":"120"},"cover_high_mm":{"G":"165r","H":"150"},"max_threaded_entries":{"LME":{"1/2"":6,"3/4"":6,"1"":3,"1.1/4"":2,"1.1/2"":2,"2"":1},"LMA":{"1/2"":10,"3/4"":8,"1"":4,"1.1/4"":3,"1.1/2"":3,"2"":2}},"max_M22_holes_on_cover":"6"},"CDWE-09":{"dimensions_mm":{"A":"280","B":"200","C":"322","D":"192","E":"292","F":"212","G1":"135","H1":"120","G2":"165","H2":"150","i":"6","placa_montagem":"250 x 170","diametro_J":"5/16""},"cover_standard_mm":{"G":"135r","H":"120"},"cover_high_mm":{"G":"165r","H":"150"},"max_threaded_entries":{"LME":{"1/2"":6,"3/4"":6,"1"":5,"1.1/4"":2,"1.1/2"":2,"2"":1},"LMA":{"1/2"":10,"3/4"":8,"1"":4,"1.1/4"":3,"1.1/2"":3,"2"":2}},"max_M22_holes_on_cover":"9"},"CDWE-10":{"dimensions_mm":{"A":"300","B":"300","C":"340","D":"276","E":"312","F":"312","G1":"165","H1":"150","G2":"195","H2":"180","i":"6","placa_montagem":"260 x 260","diametro_J":"3/8""},"cover_standard_mm":{"G":"165r","H":"150"},"cover_high_mm":{"G":"195r","H":"180"},"max_threaded_entries":{"LME":{"1/2"":10,"3/4"":10,"1"":8,"1.1/4"":5,"1.1/2"":3,"2"":2,"2.1/2"":2,"3"":2},"LMA":{"1/2"":10,"3/4"":10,"1"":8,"1.1/4"":5,"1.1/2"":3,"2"":2,"2.1/2"":2,"3"":2}},"max_M22_holes_on_cover":"16"},"CDWE-11":{"dimensions_mm":{"A":"380","B":"220","C":"425","D":"210","E":"392","F":"232","G1":"135","H1":"120","G2":"165","H2":"150","i":"6","placa_montagem":"340 x 130","diametro_J":"3/8""},"cover_standard_mm":{"G":"135r","H":"120"},"cover_high_mm":{"G":"165r","H":"150"},"max_threaded_entries":{"LME":{"1/2"":6,"3/4"":6,"1"":5,"1.1/4"":2,"1.1/2"":2,"2"":1},"LMA":{"1/2"":14,"3/4"":12,"1"":5,"1.1/4"":4,"1.1/2"":4,"2"":3}},"max_M22_holes_on_cover":"15"},"CDWE-12":{"dimensions_mm":{"A":"400","B":"400","C":"442","D":"382","E":"412","F":"412","G1":"215","H1":"200","G2":"245","H2":"230","i":"6","placa_montagem":"360 x 360","diametro_J":"3/8""},"cover_standard_mm":{"G":"215r","H":"200"},"cover_high_mm":{"G":"245r","H":"230"},"max_threaded_entries":{"LME":{"1/2"":14,"3/4"":12,"1"":10,"1.1/4"":4,"1.1/2"":4,"2"":3,"2.1/2"":3,"3"":2},"LMA":{"1/2"":14,"3/4"":12,"1"":10,"1.1/4"":4,"1.1/2"":4,"2"":3,"2.1/2"":3,"3"":2}},"max_M22_holes_on_cover":"30"},"CDWE-13":{"dimensions_mm":{"A":"450","B":"220","C":"480","D":"202","E":"462","F":"232","G1":"165","H1":"150","G2":"195","H2":"180","i":"6","placa_montagem":"400 x 185","diametro_J":"3/8""},"cover_standard_mm":{"G":"165r","H":"150"},"cover_high_mm":{"G":"195r","H":"180"},"max_threaded_entries":{"LME":{"1/2"":6,"3/4"":6,"1"":5,"1.1/4"":2,"1.1/2"":2,"2"":1,"2.1/2"":1,"3"":1},"LMA":{"1/2"":16,"3/4"":14,"1"":12,"1.1/4"":5,"1.1/2"":4,"2"":3,"2.1/2"":3,"3"":3}},"max_M22_holes_on_cover":"18"},"CDWE-14":{"dimensions_mm":{"A":"550","B":"250","C":"596","D":"236","E":"566","F":"266","G1":"170","H1":"150","G2":"200","H2":"180","i":"8","placa_montagem":"520 x 120","diametro_J":"3/8""},"cover_standard_mm":{"G":"170r","H":"150"},"cover_high_mm":{"G":"200r","H":"180"},"max_threaded_entries":{"LME":{"1/2"":8,"3/4"":6,"1"":6,"1.1/4"":2,"1.1/2"":2,"2"":2,"2.1/2"":1,"3"":1},"LMA":{"1/2"":20,"3/4"":18,"1"":16,"1.1/4"":6,"1.1/2"":5,"2"":4,"2.1/2"":4,"3"":3}},"max_M22_holes_on_cover":"21"},"CDWE-15":{"dimensions_mm":{"A":"650","B":"350","C":"696","D":"330","E":"666","F":"386","G1":"170","H1":"150","G2":"200","H2":"180","i":"8","placa_montagem":"620 x 320","diametro_J":"3/8""},"cover_standard_mm":{"G":"170r","H":"150"},"cover_high_mm":{"G":"200r","H":"180"},"max_threaded_entries":{"LME":{"1/2"":12,"3/4"":12,"1"":10,"1.1/4"":4,"1.1/2"":3,"2"":2,"2.1/2"":2,"3"":2},"LMA":{"1/2"":24,"3/4"":22,"1"":18,"1.1/4"":7,"1.1/2"":6,"2"":5,"2.1/2"":4,"3"":4}},"max_M22_holes_on_cover":"45"},"CDWE-16":{"dimensions_mm":{"A":"750","B":"400","C":"780","D":"375","E":"766","F":"416","G1":"220","H1":"200","G2":"250","H2":"230","i":"8","placa_montagem":"700 x 350","diametro_J":"3/8""},"cover_standard_mm":{"G":"220r","H":"200"},"cover_high_mm":{"G":"250r","H":"230"},"max_threaded_entries":{"LME":{"1/2"":21,"3/4"":18,"1"":15,"1.1/4"":8,"1.1/2"":8,"2"":3,"2.1/2"":3,"3"":2,"4"":2},"LMA":{"1/2"":39,"3/4"":36,"1"":22,"1.1/4"":16,"1.1/2"":14,"2"":5,"2.1/2"":5,"3"":4,"4"":4}},"max_M22_holes_on_cover":"60"},"CDWE-17":{"dimensions_mm":{"A":"750","B":"480","C":"796","D":"466","E":"766","F":"496","G1":"240","H1":"220","G2":"270","H2":"250","i":"8","placa_montagem":"700 x 440","diametro_J":"3/8""},"cover_standard_mm":{"G":"240r","H":"220"},"cover_high_mm":{"G":"270r","H":"250"},"max_threaded_entries":{"LME":{"1/2"":24,"3/4"":21,"1"":18,"1.1/4"":10,"1.1/2"":8,"2"":3,"2.1/2"":3,"3"":3,"4"":2},"LMA":{"1/2"":39,"3/4"":36,"1"":33,"1.1/4"":16,"1.1/2"":14,"2"":5,"2.1/2"":5,"3"":4,"4"":4}},"max_M22_holes_on_cover":"70"},"CDWE-18":{"dimensions_mm":{"A":"960","B":"600","C":"1020","D":"585","E":"980","F":"620","G1":"244","H1":"224","G2":"274","H2":"254","i":"10","placa_montagem":"910 x 550","diametro_J":"3/8""},"cover_standard_mm":{"G":"244r","H":"224"},"cover_high_mm":{"G":"274r","H":"254"},"max_threaded_entries":{"LME":{"1/2"":33,"3/4"":30,"1"":24,"1.1/4"":14,"1.1/2"":12,"2"":4,"2.1/2"":4,"3"":4,"4"":3},"LMA":{"1/2"":51,"3/4"":48,"1"":42,"1.1/4"":22,"1.1/2"":18,"2"":7,"2.1/2"":7,"3"":6,"4"":5}},"max_M22_holes_on_cover":"117"},"CDWE-19":{"dimensions_mm":{"A":"575","B":"575","C":"620","D":"540","E":"591","F":"591","G1":"244","H1":"224","G2":"274","H2":"254","i":"8","placa_montagem":"530 x 530","diametro_J":"3/8""},"cover_standard_mm":{"G":"244r","H":"224"},"cover_high_mm":{"G":"274r","H":"254r"},"max_threaded_entries":{"LME":{"1/2"":30,"3/4"":27,"1"":24,"1.1/4"":12,"1.1/2"":12,"2"":4,"2.1/2"":4,"3"":3,"4"":3},"LMA":{"1/2"":30,"3/4"":27,"1"":24,"1.1/4"":12,"1.1/2"":12,"2"":4,"2.1/2"":4,"3"":3,"4"":3}},"max_M22_holes_on_cover":"72"}}

A capacidade de bornes/réguas depende do modelo e da seção nominal e é definida no orçamento. Quantidade de entradas, furos M22, bornes e dobradiças não geram variações.

Acabamento: pintura eletrostática a pó em poliéster, cinza Munsell N6.5; placa de montagem laranja Munsell 2,5YR 6/14.
